Superb Vac Wet Vacuum Pumps

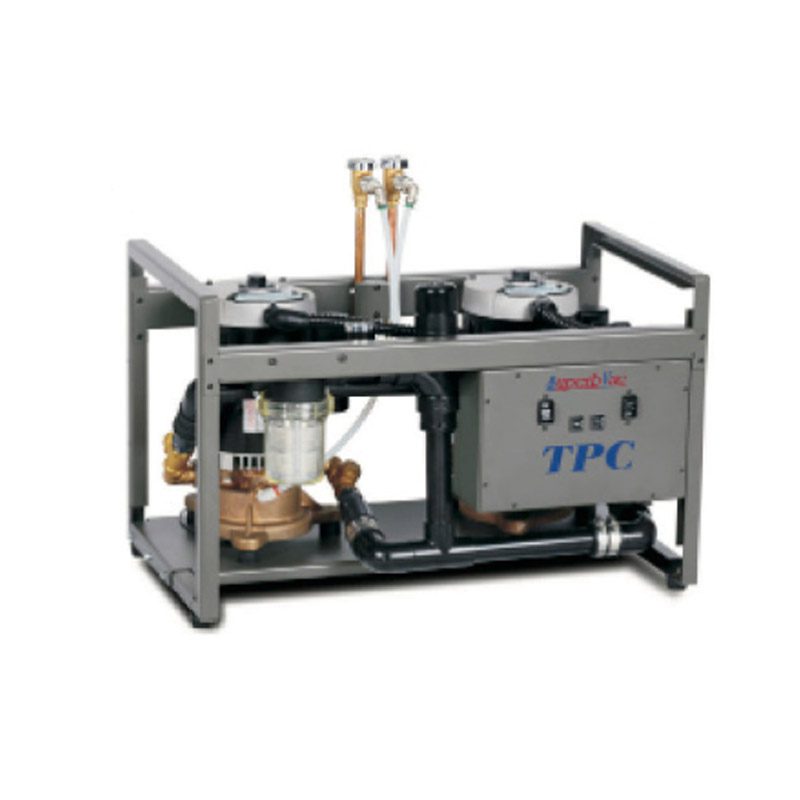

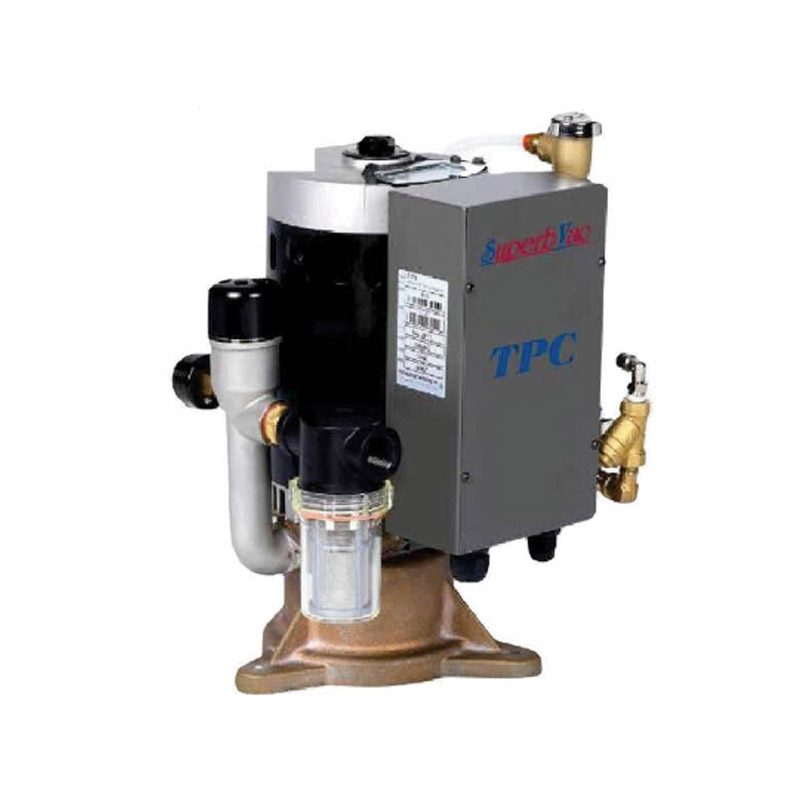

The TPC Superb Vac wet ring vacuum pump offers a quiet operation for small to medium-sized dental practices. Our twin TPC Superb Vac wet ring vacuum pump provides vacuum suction when operating during peak work periods. The twin pump offers backup protection to minimize downtime and costly interruption to workflow.
Features:
• Durable aluminum-bronze construction
• Stainless steel impeller
• Computer-balanced, sealed bearings in motor Large capacity, easy to clean the filter with clear bowl for easy inspection
• Available in single and twin models to accommodate 1-10 users
• 5-year full product limited warranty
• Unique water recycling to save up to 80% of water
• 110V or 220V 50/60 Hz
• 2 3/8″ air exhaust connection size
• 20Amp circuit breaker
• Noise level less than < 58 dB
• 3/8″ city water connection
• 3/4″ inlet connection
• Stainless steel impeller
• NFPA 99C level 3-compliant
• UL/CUL classified
Specifications:
| Model | WV3 (Single) | WV5 (Single) | WV6 (Twin) | WV10 (Twin) |
|---|---|---|---|---|
| Voltage | 220V 50/60Hz | 220V 50/60Hz | 220V | 220V |
| Frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| Horse Power | 1.2 HP | 2 HP | 2.4 HP (2×1.2HP) | 4 HP (2x2HP) |
| Max. Users | 3 | 5 | 6 | 10 |
| Current (A) | 8A | 13A | 8Ax2 | 13Ax2 |
| Circuit Breaker (A) | 20A | 20A | 20Ax2 | 20Ax2 |
| Inlet Connection Size | 3/4″ | 3/4″ | 1″ | 1 1/4″ |
| Drain Connection Size | 3/4″ | 3/4″ | 1 1/4″ | 1 1/4″ |
| City Water Connection Size | 3/8″ | 3/8″ | 3/8″ | 2 3/8″ |
| Air Exhaust Connection Size | 2 3/8″ | 2 3/8″ | 2 3/8″ | 2 3/8″ |
| Inlet Water Pressure (PSI) | 10 | 10 | 10 | 10 |
| Ambient Temperature | 23/8″ | 23/8″ | 23/8″ | 23/8″ |
| Product Size (LxWxH) Inches | 16.5x14x18 | 16.5x14x18 | 28x17x18 | 28x17x18 |
| Product Weight (LBS) | 62lbs | 66lbs | 176lbs | 198lbs |
| Suction Rate | 900L/min | 1500L/min | 1800L/min | 3000L/min |
| Vacuum Level (IN Hg) | 8-15 HG | 8-15 HG | 8-15 HG | 8-15 HG |
| Noise Level dB (A) | 58 | 58 | 65 | 65 |
