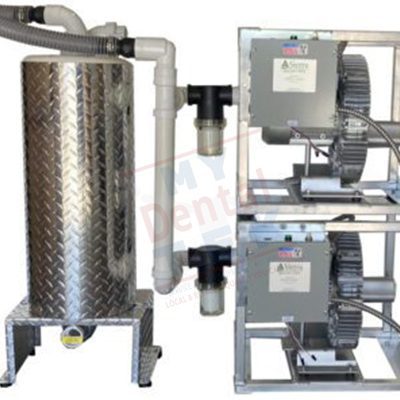

Sierra Dental Dual Dry Vacuum System 3.5 HP (1-10 Users) | TV20

Sierra Dental Dual Dry Vacuum System 3.5 HP (1/10 Users)
A state –of- the-art vacuum that is a very powerful, high volume, efficient system. 230-volt motor provides the HP necessary to handle high demands while maintaining multiple operatories. Equipped with a Vortex Action Separator (VAS) Tank, your TRU-VAC dry vacuum system will ensure efficiency and reliability.
Specifications:
Voltage – 230 VAC
Operating Load – 8.3 Amps
Start-up Load – 14 Amps
Frequency – 50 – 60 Hz
Low Voltage Remote – 24 VAC
Max Operators – 10 users
Tank Capacity – 12 Gallons
Air Flow – 62 cfm
Ambient Temp – 41° – 104° F
Max Operating Temp – 214° F
Decibels – 61 decibels
Thermal Safety Switch – Yes
Tank Specifications:
Weight – 43 lbs.
Length – 15”
Width – 17”
Height – 40”
Capacity – 12 Gal.
Chassis Specifications:
Weight – 94 lbs. (x 2)
Length – 20-1/2”
Width – 20-1/4”
Height – 19-1/2” (includes rubber feet)

10 Year Warranty
