MaxRay Handheld Portable X-Ray

$5,700.00

Features:

  • Lightweight and portable at 4.4lbs, the MaxRay is designed for easy mobility between rooms, held by hand or with a carrying strap.
  • Efficient workflow: Take an FMX in minutes, nearly twice as fast as conventional X-ray systems, potentially saving 120 work hours annually.
  • Safety first: Zero leakage design with extensive testing ensures safety for both operator and patient, featuring sealed interior components with multiple lead sheets.
  • Long-lasting battery: Over 200 X-rays on a 2-hour charge with a high-performance LI battery, surpassing other systems that provide only 100 shots per charge.
  • Convenient charging: Forget to charge? No problem. Plug in the power adapter to the nearest outlet for continuous X-ray capability.
  • Crystal clear images: With a 0.8mm focal point at 60kV, the MaxRay generator produces sharp, high-resolution images while minimizing patient dose.
SKU: BX‐3000K Categories: ,

Description

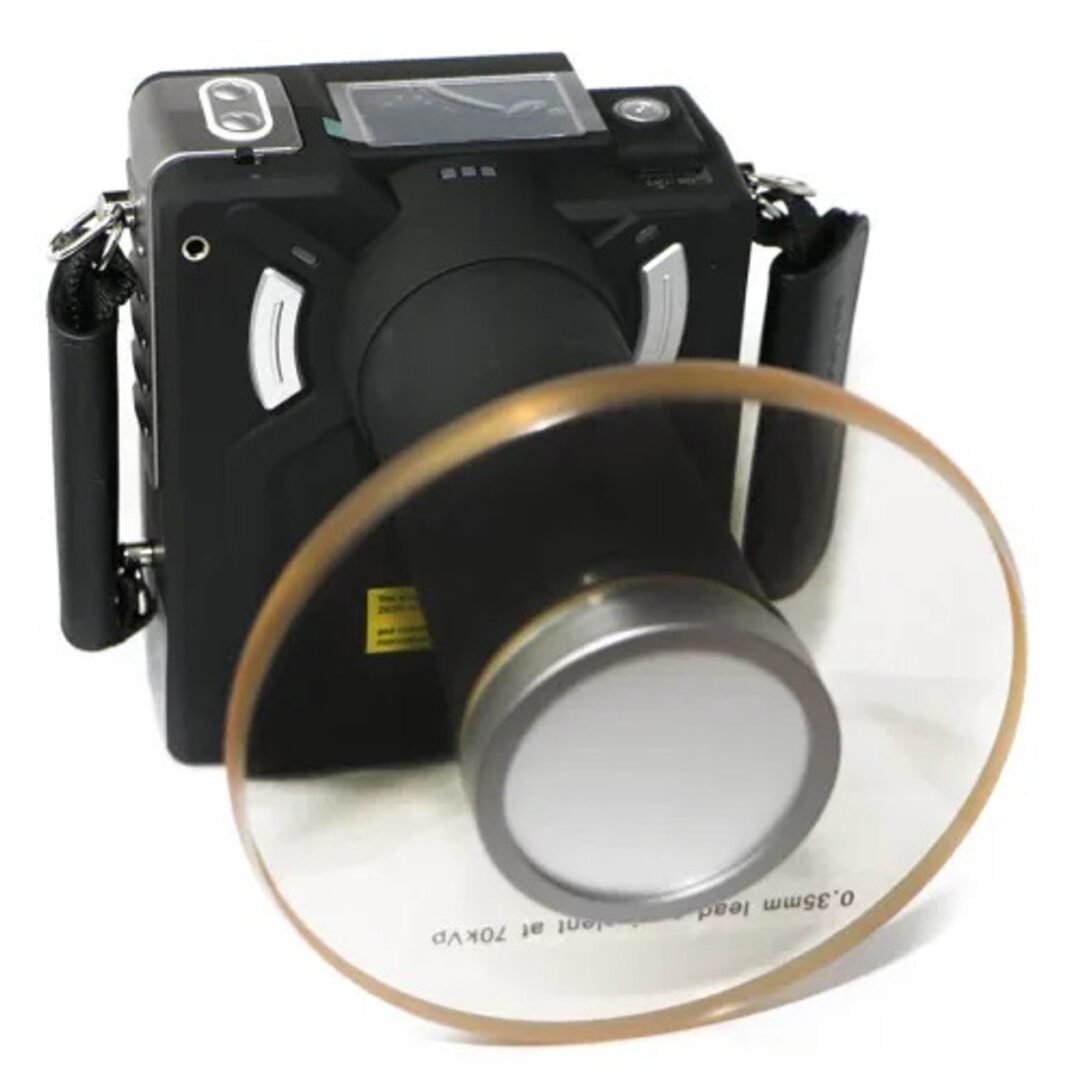

MaxRay Handheld Portable X-Ray

The MaxRay Handheld X-Ray Unit offers a cost-effective alternative, priced nearly half that of competitors like Nomad. Approved by the FDA, the MaxRay ensures safety with its zero-leakage design, backed by extensive testing and studies for both patient and operator well-being. Unlike imitations that may pose risks, the MaxRay Portable X-Ray generator allows easy mobility between rooms, eliminating the need for bulky conventional X-ray units. The package includes features such as an internal battery, lead-infused plexiglass shield, backup external battery, charging adapter, charging station pad, neck strap, carrying bag, CD-ROM instruction manual, and a 2-year warranty, all in sleek black.

Technical Specs:

  • Item Classification: 2, Code: A11080.02 (in Korea)
  • Grade: Class IIb (MDD 93/42/EEC as amended by 2007/47/EC)
  • Classification: B Type applied part
  • Tube Voltage: 60kV (fixed)
  • Tube Current: 2mA (fixed)
  • X-Ray Tube Focal Size: 0.8mm
  • Cooling system: Oil cooling
  • Total filtration: 1.5mm Al
  • Inherent filtration: 0.8mm, fixed added filter :0.7 mm Aluminum)
  • Target angle: 19 ~ 20°
  • Time Set-up function: 0.05 ~ 1.35 sec (Film/Digital included)
  • Source to image receptor distance: >10cm (fixed by cone)
  • X-ray field: 50 mm (round-style)
  • Size of main body: 139 (W) x 163.5 (H) x 66.5mm (D)
  • Weight of body: About 1.8 kg (except the battery pack)
