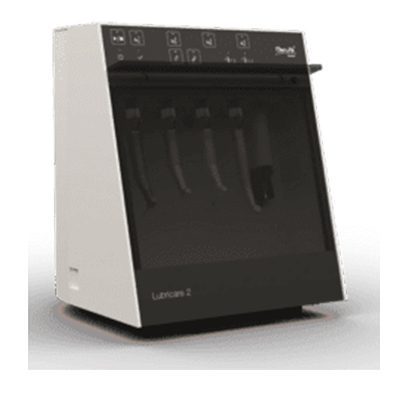

Bien Air Lubricare 2 Automatic Handpiece Maintenance System | 1601156-001

Quick, simple, and economic – this perfectly sums up the Lubricare maintenance device, when used with Bien-Air’s Spraynet and Lubrifluid products, with each spray specifically designed for a phase in the maintenance cycle: Spraynet, for dissolving impurities and cleaning the instrument both inside and out, and Lubrifluid, for effective lubrication of instruments.

Lubricare and Bien-Air maintenance sprays support the daily use of your instruments, guaranteeing impeccable maintenance, optimal operation, and extended service life.

TECHNICAL DATA Capacity: Up to 4 instruments per cleaning cycle
Length of the cleaning cycle: 25 seconds per cleaning cycle, per instrument. Choice of 2 cleaning/lubrication modes: Normal mode and intensive mode
Type of instrument: Turbines, contra-angles, and handpiecesMaintenance: Cleaning and lubrication
Consumption: 5 times more economical than manual maintenance, Lubricare allows 400 maintenance cycles with 1 bottle of Spraynet and 1 bottle of Lubrifluid
Extraction system: An extraction system removes the oil vapors. A collector absorbs the excess lubricant, to ensure a cleaner working area and improved hygiene.
Lubricant detector: A lubricant detector monitors the status of the system and detects low lubricant levels
Connection: Compatible with Type E coupling as per ISO 3964 and 4- or 5-way turbine coupling
Voltage: AC 100-240 V 50/60 Hz
Air pressure: 0.3~0.5 MPa
Recommended air pressure: 0.35 MPa
Airflow rate: 40~60 Nl/min
Weight: Approx. 10 kg
Dimensions (including the collector): Width 300 x height 370 x depth 300 mm
System comes with 1 bottle each of Spraynet (1600036-006) and Lubrifluid (1600064-006)
